SPECIFICATIONS

Application: Computer

Brand Name: GRWIBEOU

Certification: CE

Choice: yes

Connector A: USB

Connector B: HDMI-Compatible

Feature: None

Gender: Male-Female

High-concerned chemical: None

Model Number: /

Origin: Mainland China

Outer Diameter: /

Package: Yes

Type: USB Cables

semi_Choice: yes

Operation:

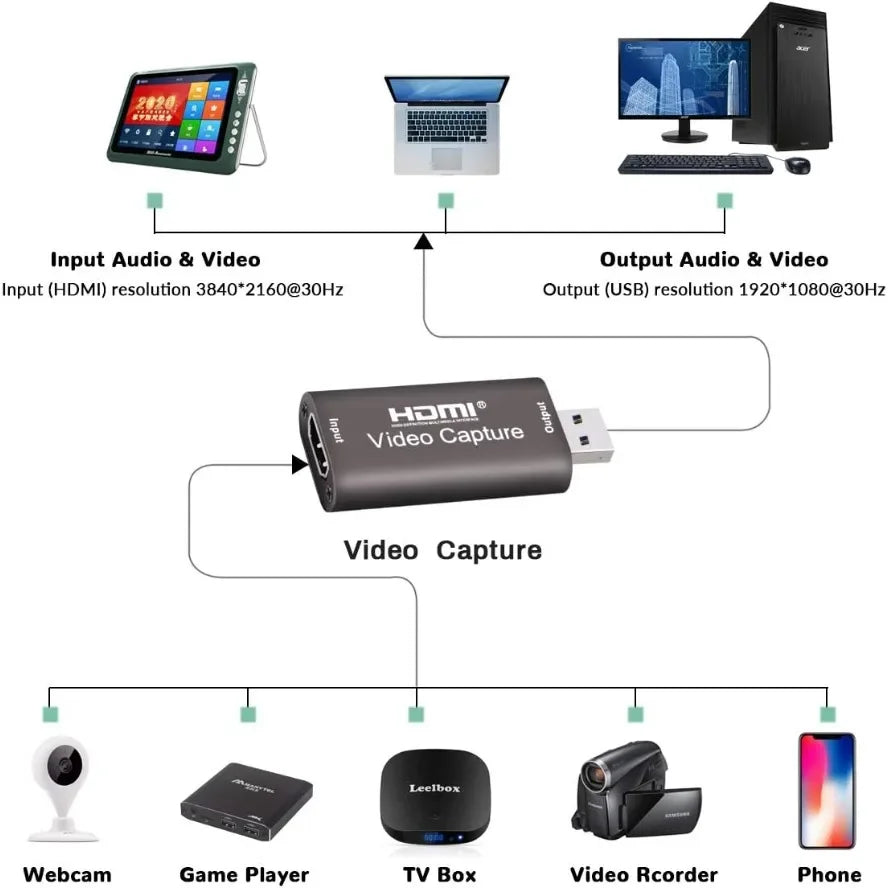

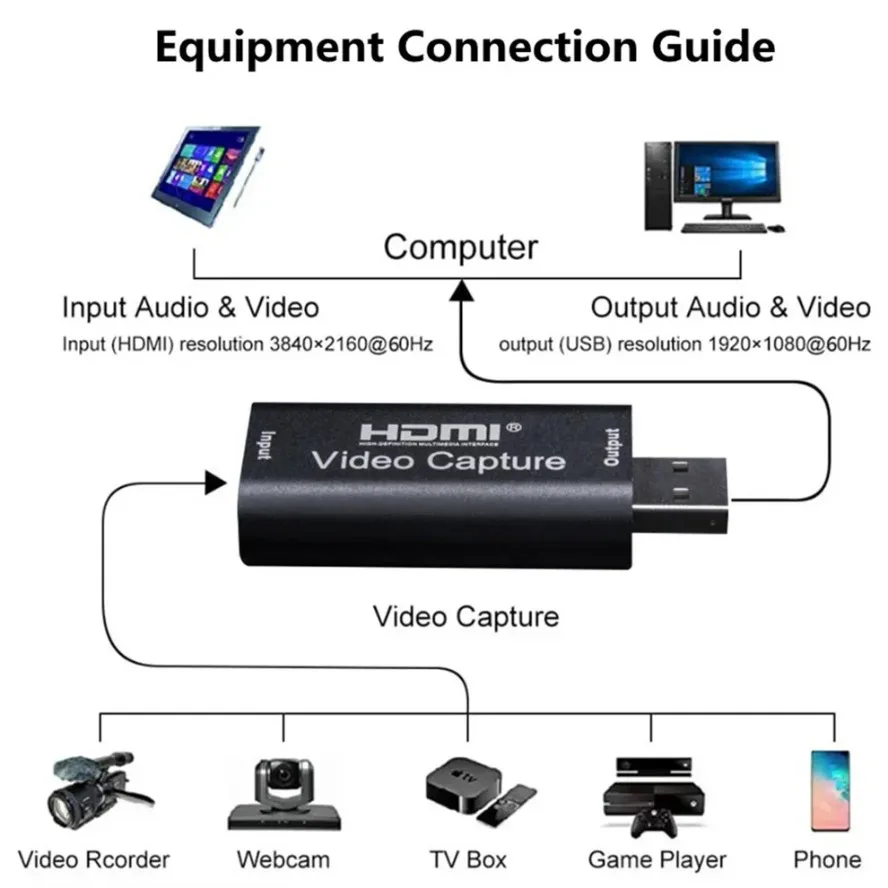

1: use an HDMI line to connect the UHD signal source of USB acquisition card and HDMI input port.
2. Insert the USB card of the USB acquisition card into the USB port of the computer.

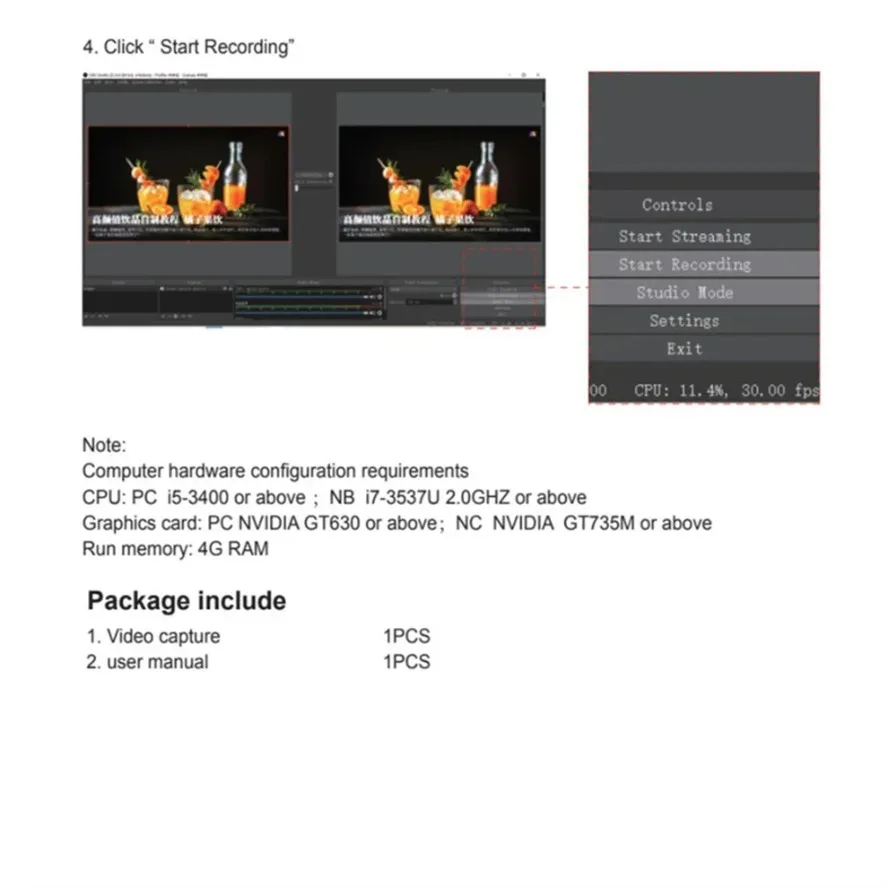

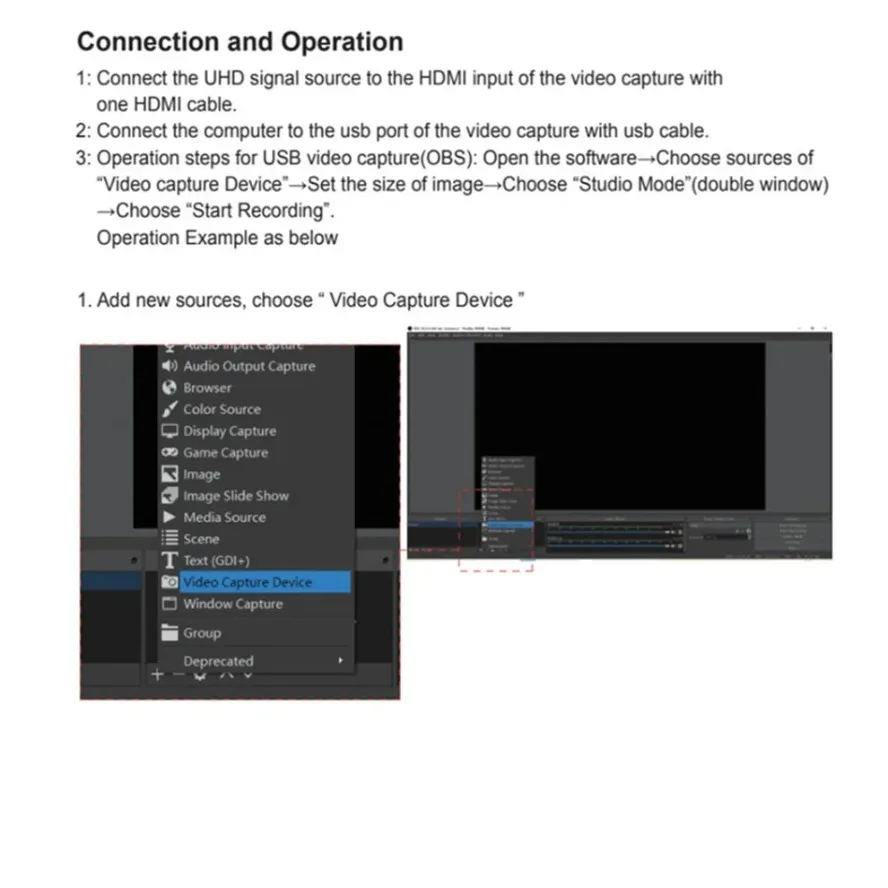

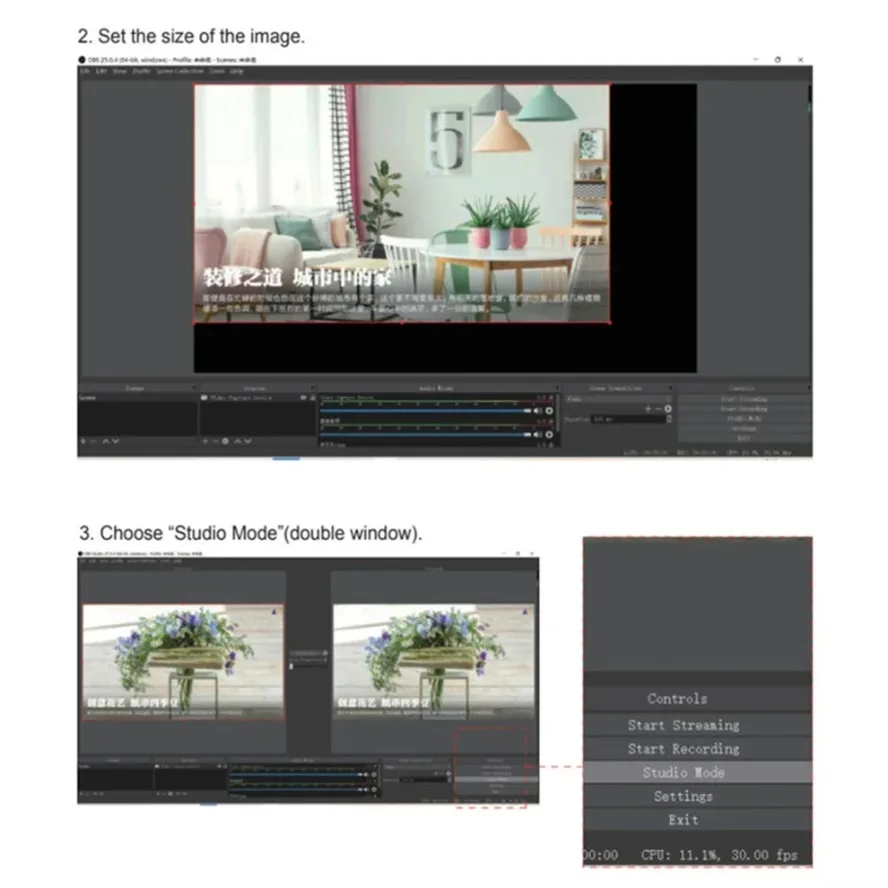

3: Collection operation steps (OBS): open the software-add a new source-select "video capture device"-set the screen size-select "studio mode" (double window)-click "start recording"

Hardware configuration requirements of computer:
CPU: PCi5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM Note:
Due to the different display and light effects, the actual color of the project may be slightly different. Please refer to the user's manual for details.

Product specifications:
HDMI resolution ........................................... maximum input can support 4K/1080P.
Input video format ............................................................ 8/10/12 bit color depth
Video output mode ............................................................... YUV, JPEG
The maximum output resolution of video output resolution ............................................ is 1080P.
Support audio format ........................................................................ L-PCM
Input cable length ................................ ≤ 15m, AWG26 HDMI standard cable
The maximum working current ................................................................. is 0.4A/5VDC.
Operating temperature range ............................................................. (-10 to 55℃)

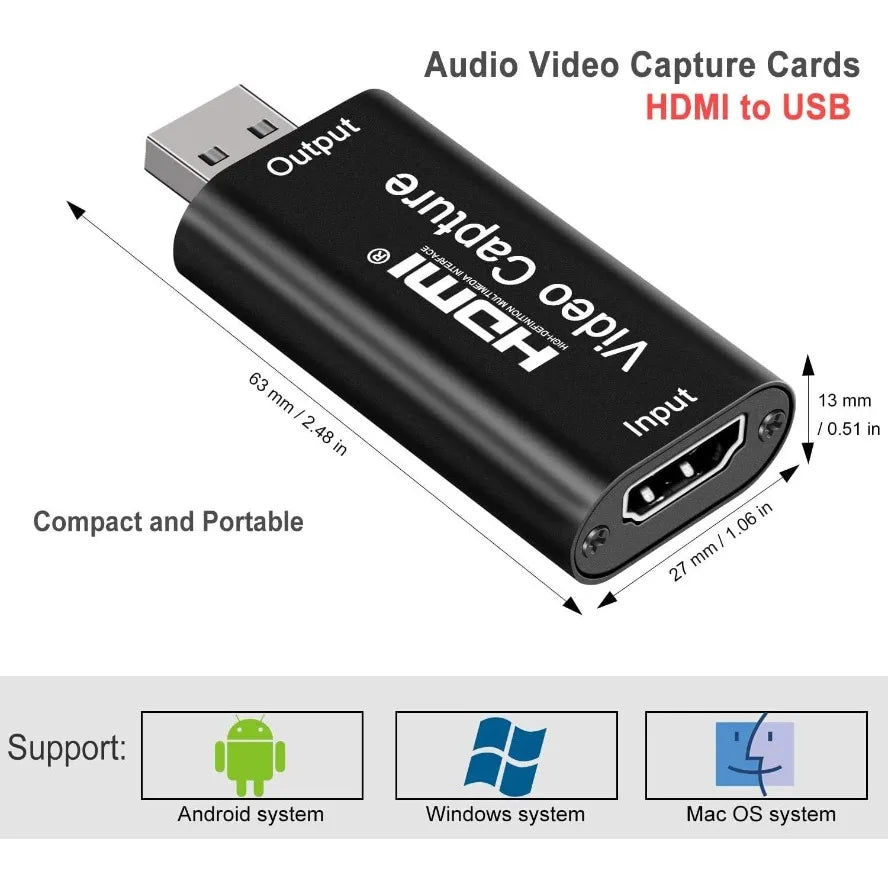

Dimension(L x W x H)......................................... size 64x28x13 (mm)/2.52x1.1x0.51 inch
The weight of ......................................................................................... is 21.4g

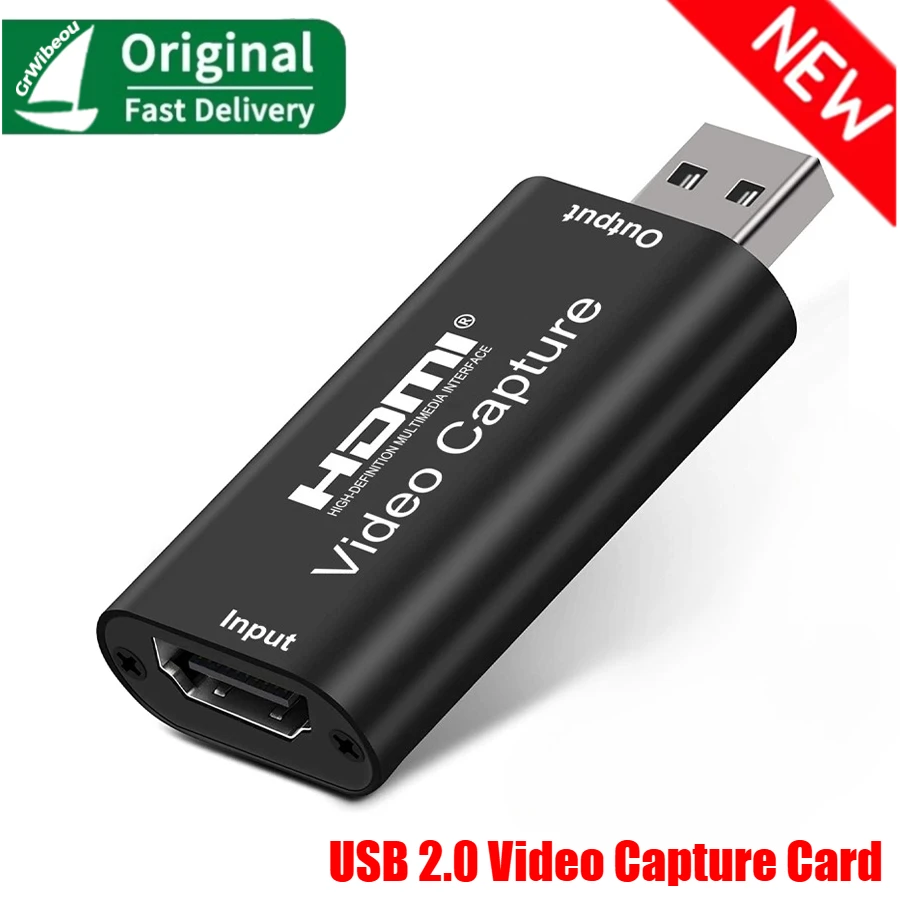

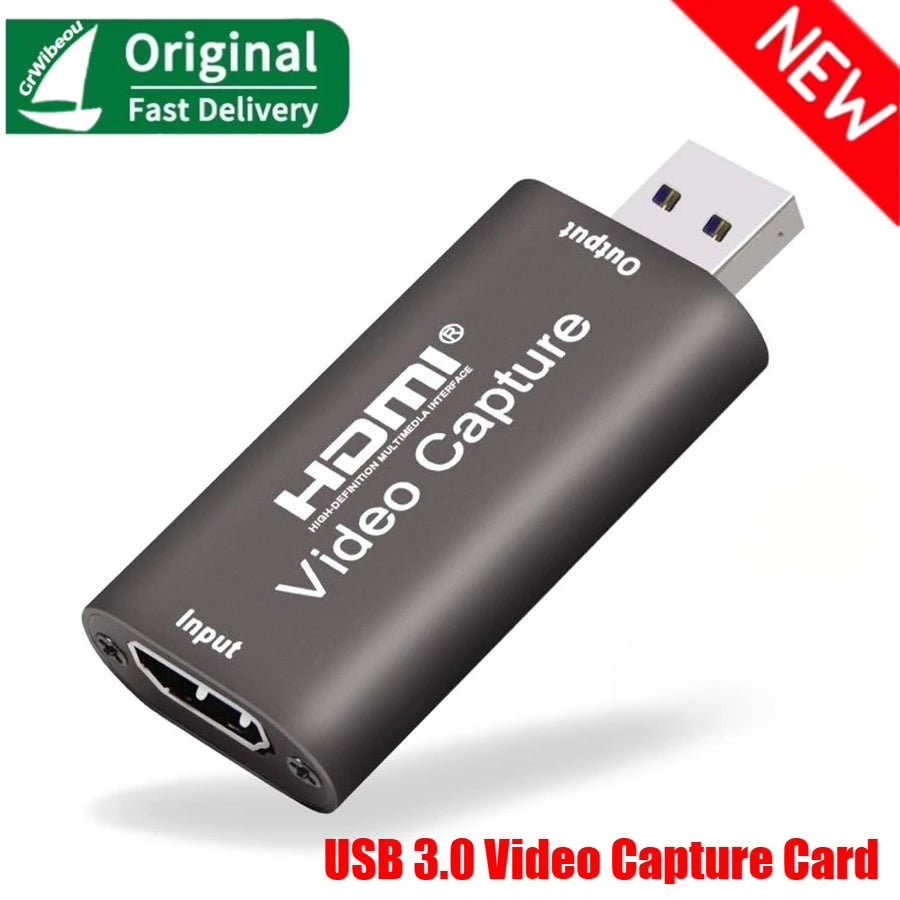

Product description:

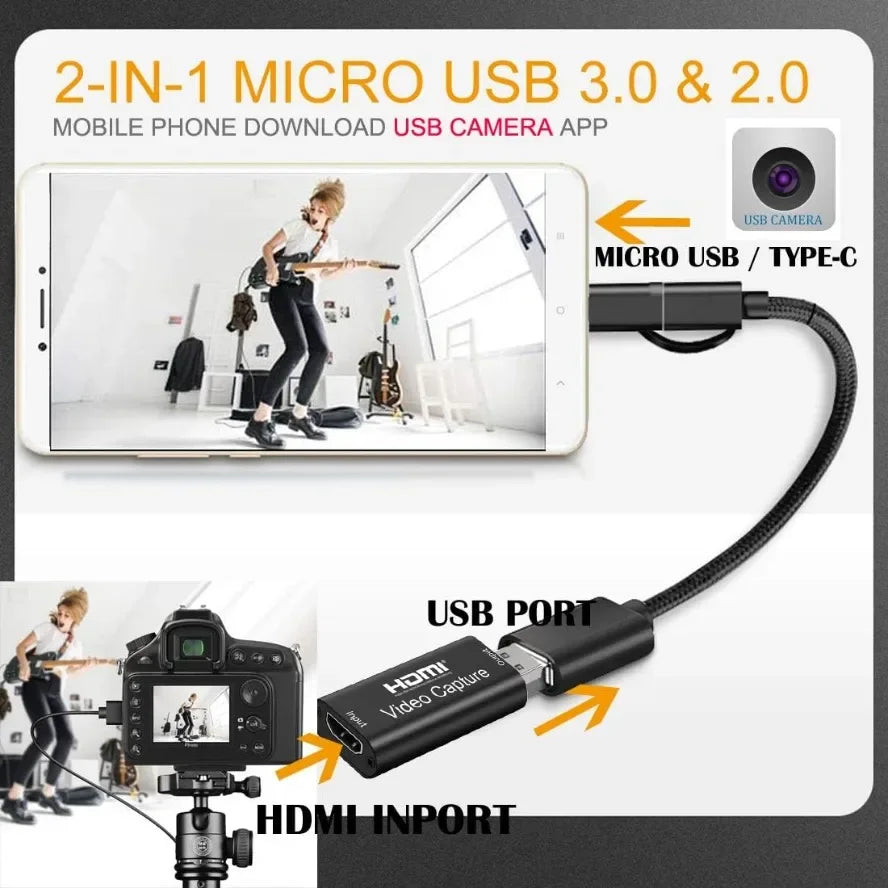

This USB 2.0/3.0 acquisition card can collect both HDMI video and HDMI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Product features:
* Support the maximum input resolution of 4K/1080P;
* Support 8/10/12 bit color depth;
* Support the input transmission distance of 15m (1080P and below) when using standard AWG26 cable;

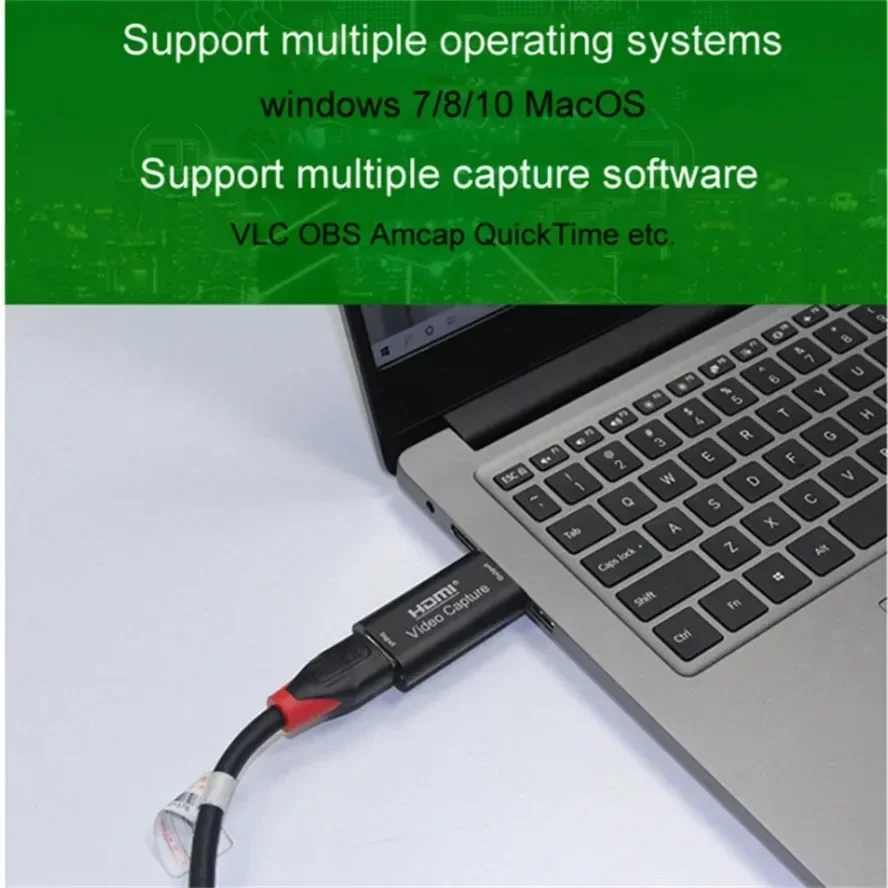

* Support most acquisition software, such as VLC, OBS, Amcap,switch,Xbox One etc.
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* comply with USB audio UAC specification;
* No need for external power supply, small size and easy to carry.

Package Included:
1*Video Capture
1* instructions
